A functional model of motor unit : Rat nerve - Human muscle coculture

Newsletter # 03



Cellular models

Welcome to our newsletter which presents a functional model of the motor unit.
The motor unit is an intricate pluricellular structure in which motor neurons and muscle fibers are dependant on each other. Its formation and maintenance depend on continuous trophic, electrical and mechanical cross-talk between muscle and motor nerve.
The ability of compounds to improve spinal motor neurons functionality can be assessed by determining their ability to innervate and to induce muscle innervation in a coculture of rat spinal motor neurons with human muscle. This model could be used to evaluate the neurotrophic activity of compounds.

NEUROFIT is a Contract Research Organisation (CRO) specialising in the evaluation of treatments for peripheral and central nervous system disorders. NEUROFIT offers a long list of in vivo and in vitro validated methods and disease models for drug screening.


  • Low magnification picture of a Petri dish in which 5 explants are initially placed. After 3 weeks, the 3 explants, marked with a dot, were not able to produce an efficient innervation and the 2 latter explants innervated large muscle areas which were delimited by a line.

  • This picture represents 4 innervated fibers muscle bundles on muscle derived cells monolayer.

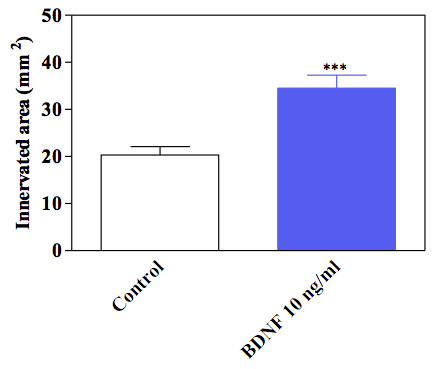

  • BDNF at 10 ng/ml increases the innervate rate from 20% under control condition to 25% with BDNF and augments the surface of skeletal muscle innervated by an efficient rat spinal cord-human muscle coupling

  • • Muscle derived cells, mainly myoblastes and fibroblasts are cultured in monolayers. Immediately after myoblaste fusion, whole transversal slices of rat embryos spinal cords with dorsal root ganglia attached are placed on the muscle monolayer. After 24 hours neuritis are observed growing out of the spinal cord explants. They then make contacts with myotubes and induce the first contractions. Quickly thereafter, innervated muscle fibres located in proximity to the spinal cord explants, are virtually continuously contracting (see movies on our website). Innervated fibres are morphologically and spatially distinct from the non-innervated ones and can easily be distinguished from them (Askanas et al., 1987). The ability of a molecule to promote spinal motor neuron survival, neurites outgrowth and/or neurons functionality can be evaluated by measuring neurite sprouting (number and length), innervation rate (the number of spinal cord-muscle couple which lead to an innervation), innervation area (the surface covered by innervated muscle fibers per spinal cord explant), ACh receptor aggregation as well as several other parameters depending upon the mode of action of the compound (Braun et al., 1996).
